AS703 Handheld Wireless Microphone

The AS703 is a handheld wireless microphone designed specifically for educators, providing seamless and reliable classroom communication. Featuring advanced IR pairing technology, it connects effortlessly to MYSHER IFPDs within a 2-meter range. For compatibility with third-party interactive flat panels or speakers, the included USB dongle (receiver) enables quick pairing without the need for drivers, eliminating the limitations of wired connections and allowing greater flexibility in teaching. Equipped with a built-in 1200mAh rechargeable battery, the AS703 ensures up to 11 hours of continuous operation, supporting uninterrupted lessons. Its integrated DSP chip effectively reduces environmental noise, delivering clear and professional sound through the IFPD’s speakers or an external speaker. With a wireless range of up to 10 meters, teachers can move freely around the classroom without losing connection, making the AS703 an essential tool for creating an engaging and dynamic learning environment.

所属分类：

相关推荐

在线留言

重量

Quantity

库存

隐藏域元素占位

Product description Specifications

▾ Brochure Download

Wireless Freedom for Interactions

The AS703, a wireless handheld microphone, provides a wide range of mobility for use in classrooms or meeting rooms.

It eliminates the limitations of wired connections, enabling seamless interactions.

Seamless Integration with MYSHER’s FA-Series IFPD

Solution 1: Integrate with MYSHER’s IFPD wirelessly

The AS703 microphone kit can be seamlessly integrated with MYSHER’s IFPD through the built-in X-MIC receiver. Simply position the AS703 microphone’s IR transmitter near the X-MIC sensor on the IFPD, and you’re all set with a cable-free connection—no additional setup required.

Solution 2: Effortless Multi-Device Connectivity with MYSHER’s IFPD

MYSHER’s IFPD seamlessly connects with both the AS703 Wireless Handheld Microphone and the AS203 Wireless Neck-worn Microphone using IR Pairing technology. This allows educators and presenters to communicate effortlessly while engaging more dynamically with students and audiences. With both microphones connected simultaneously, the IFPD enables a more interactive and immersive learning or speaking environment.

Plug-and-Play, Driver-Free

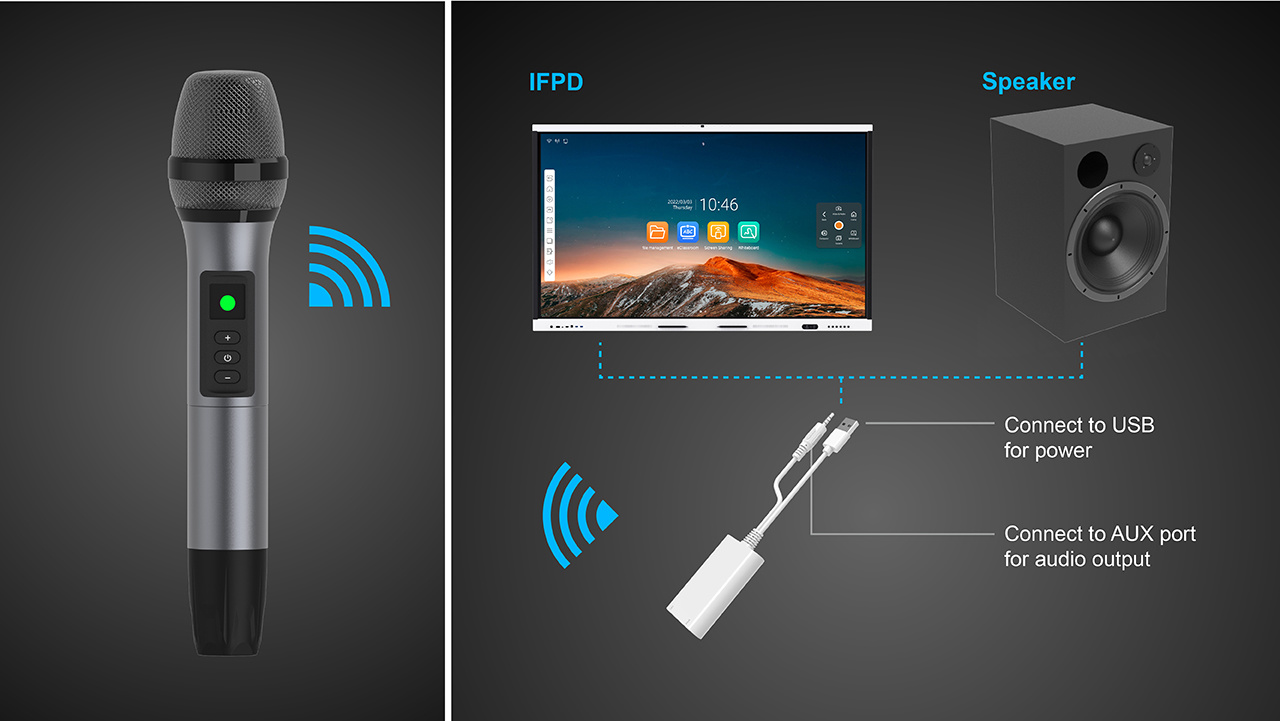

Solution 3: Quick Connection via USB Dongle (Receiver)

Quickly pair the USB Dongle (Receiver) with an IFPD or external speaker, then connect it to the Wireless Microphone (Transmitter).

No drivers are required, ensuring a fast and hassle-free setup for immediate use.

AS703 Microphone Kit Part Descripitions

Wireless Handheld Microphone(Transmitter)
Type	Neck-Worn Wireless Microphone
Transmission frequency	UHF (Ultra High Frequency)
Microphone sensitivity	-52(±1.5)dB(at 1KH)
Transmission	Infrared (IR)
Frequency response	50-16KHz
Max. wireless distance	Up to 10 Maters
Interface	USB Type-c (for charge)
Buttons	Power key, Volume Up/Down control
Battery	1200mAh
Charging voltage	5V/500mA by USB Type-C
Charging time	1.9 Hour
Working time	11 Hours
LED Indicator	Volume up/down: blue LED flashes Charging in Power On Status Low Battery: red LED flashes Battery Charging: yellow LED flashes Full Battery: solid green LED Charging in Power Off Status: Low Battery: red LED flashes Battery Charging: yellow LED flashes Full Battery: solid blue LED
Dimension	254X53X53mm
Net Weight	360g
USB Dongle (Receiver)
Transmission	Infrared (IR) pairing
Transmission frequency	UHF (570MHz–590MHz) with automatic frequency hopping
Frequency Points	38 frequency points
Latency	<0.5ms
Transmission Range	10 meters, 360-degree coverage
Interface	USB 2.0 Type-A (for Power)
Anti-Interference	Supported (automatic frequency scanning and pairing)
Antenna	Built-in
Output Interface	3.5mm AUX port
Status Indicator	Green light
Pairing Indicator	Red light
Power Consumption	<1W
Dimension	171x40x15mm
Weight	48g
